Kualitas Tinggi, Fleksibel, Stabil
Berdasarkan teknologi HP TIJ 2.5, seri DH200 menawarkan kualitas cetak resolusi tinggi, fleksibilitas, dan stabilitas.
Dengan kombinasi hingga 4 print heads, dapat mencapai resolusi hingga 1200 dpi.
Fitur Utama
Mendukung printing text, 1D & 2D codes, date & time, counter, graphic & trademark.
Adaptif terhadap berbagai lingkungan industri & bisa diintegrasikan ke lini produksi yang berbeda.
Digunakan luas di industri makanan & minuman, kimia harian, kosmetik, kabel & pipa, farmasi, elektronik, tembakau, dll.
Teknologi Khusus
Self-developed nozzle control technology.
Real-time temperature adaptive control.
Alternate nozzle printing control.
Fleksibilitas Operasi
Print resolution bisa diatur sesuai kebutuhan.
Mendukung multiple I/O signal expansion.
Kehandalan
Menggunakan original HP ink cartridge.
Lebih dari 50 factory acceptance tests.
| Spesifikasi | DH220 | DH240 |
|---|---|---|
| Teknologi Cetak | HP TIJ 2.5 | Sama |
| Tinggi Cetak | Single head: 12.7 mm; Double heads: 25.4 mm | Single head: 12.7 mm; Double heads: 25.4 mm; Triple heads: 38.1 mm; Four heads: 50.8 mm |
| Kecepatan Cetak | Hingga 100 m/menit | Sama |
| Resolusi Cetak | Vertical: 600 dpi, Horizontal: 40–1200 dpi (Single head) | Sama |
| Protokol Komunikasi | HTTP, TCP, MODBUS TCP, MODBUS RTU, dll. | Sama |
| Layar | 7-inch full color touch screen | Sama |
| Bahasa Sistem | Chinese, English, Korean, Spanish, Japanese, French, German, Italian, Turkish (customizable) | Sama |
| Input Method | Chinese, English, Korean, Arabic, Russian, Spanish, French, German (customizable) | Sama |
| Counter | Mendukung counter, fleksibel diatur | Sama |
| Barcode | Codebar, Code25, Code39, Code93, Code128, UPCA, UPCE, EAN | Sama |
| QR Code & 2D Codes | QR Code (GS1 supported), Data Matrix (GS1 supported), Grid Matrix, Maxicode, PDF417 (customizable) | Sama |
| Format Tanggal | Flexible, dapat dikustom | Sama |
| Antarmuka | Ethernet ×1; USB ×1; DVI ×1; Adapter box interface (alarm light, sensor, synchronizer, IO 2 in/2 out, RS232) | Sama + Extended adapter box (6 in, 5 out, RS232) |
| Ink Management | Auto identify ink type, auto printing parameter, ink consumption monitoring | Sama |
| Instalasi | Side & down printing bracket (standard); rebound mechanism opsional | Sama |
| Lingkungan Operasional | Operasi: -10℃ ~ +55℃; Penyimpanan: -20℃ ~ +70℃ | Sama |
| Power Supply | Input: AC 100–240 V, 50–60 Hz; Output: DC 24 V 4 A, 96 W | Sama |
| Sertifikasi | CE | Sama |

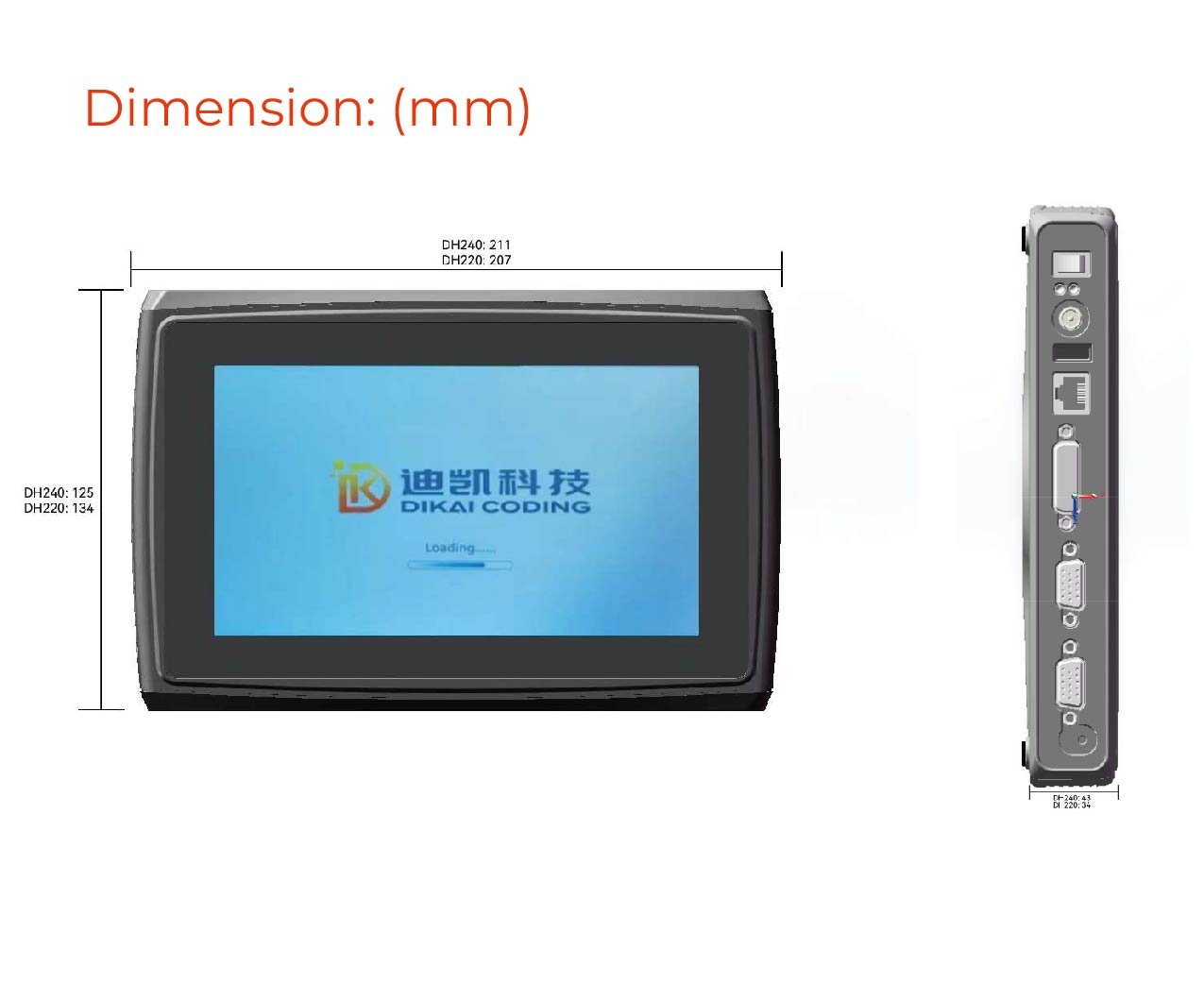

| Dimensi Controller | 207×134×34 mm | 211×125×43 mm |
| Dimensi Print Head | 156×93×49 mm | Sama |
